14/21/40/135/180mm - DZOFilm Arles Lustre FullFrame / VistaVision Prime Cine 5 Lens Kit
- Full Frame | T1.6/2.2/2.8 to T22
- 14, 21, 40, 135, and 180mm Prime Lenses
- Creates Warm Amber Halo Effect
- Cine-Style 0.8 MOD Gearing
- 95mm Front Outer Diameter
- Consistent Series Gear Placement
- Metallic, Retro-Style Design
- Front M86 Filter Thread
- Interchangeable ARRI PL/Canon EF Mounts
- Hard Case
Share
Interchangeable Mounts
- Designed to work with a variety of cameras, these Arles Lustre primes come in ARRI PL mount.
- They also include interchangeable Canon EF mounts, shims, and lens support rods.

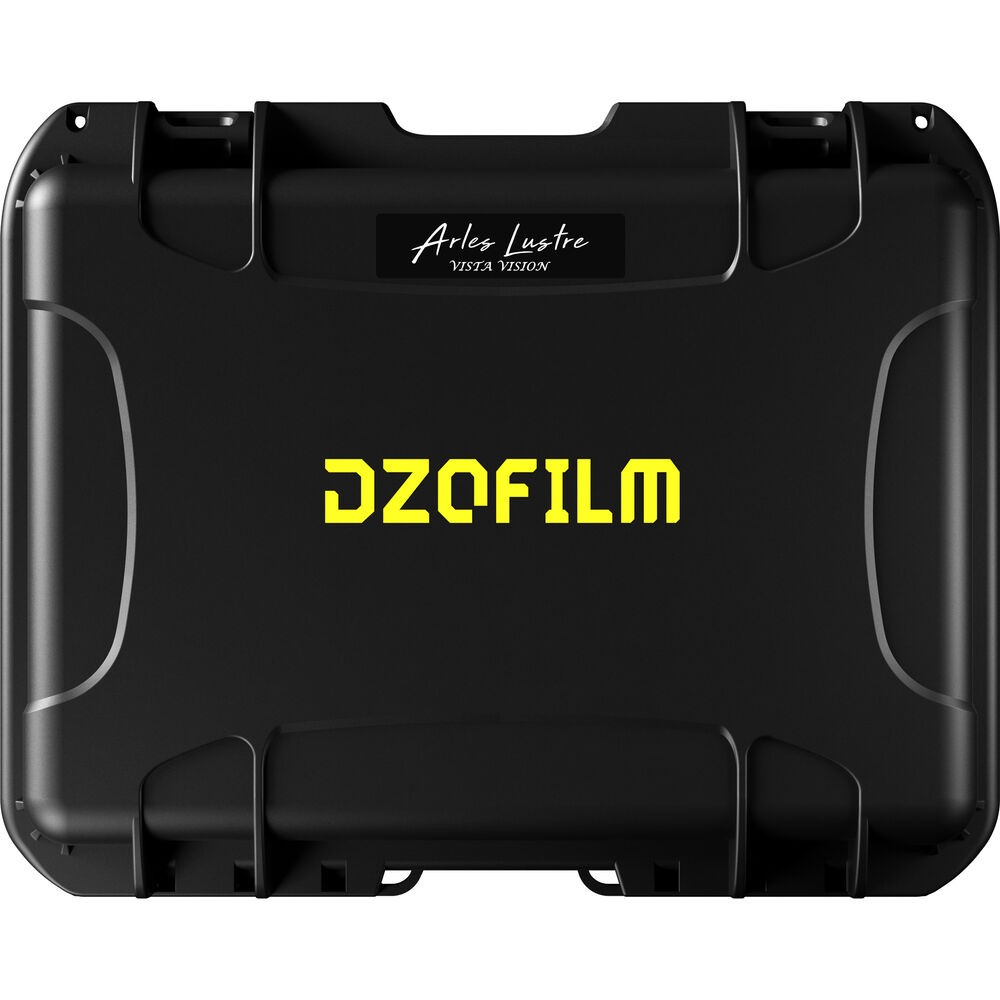

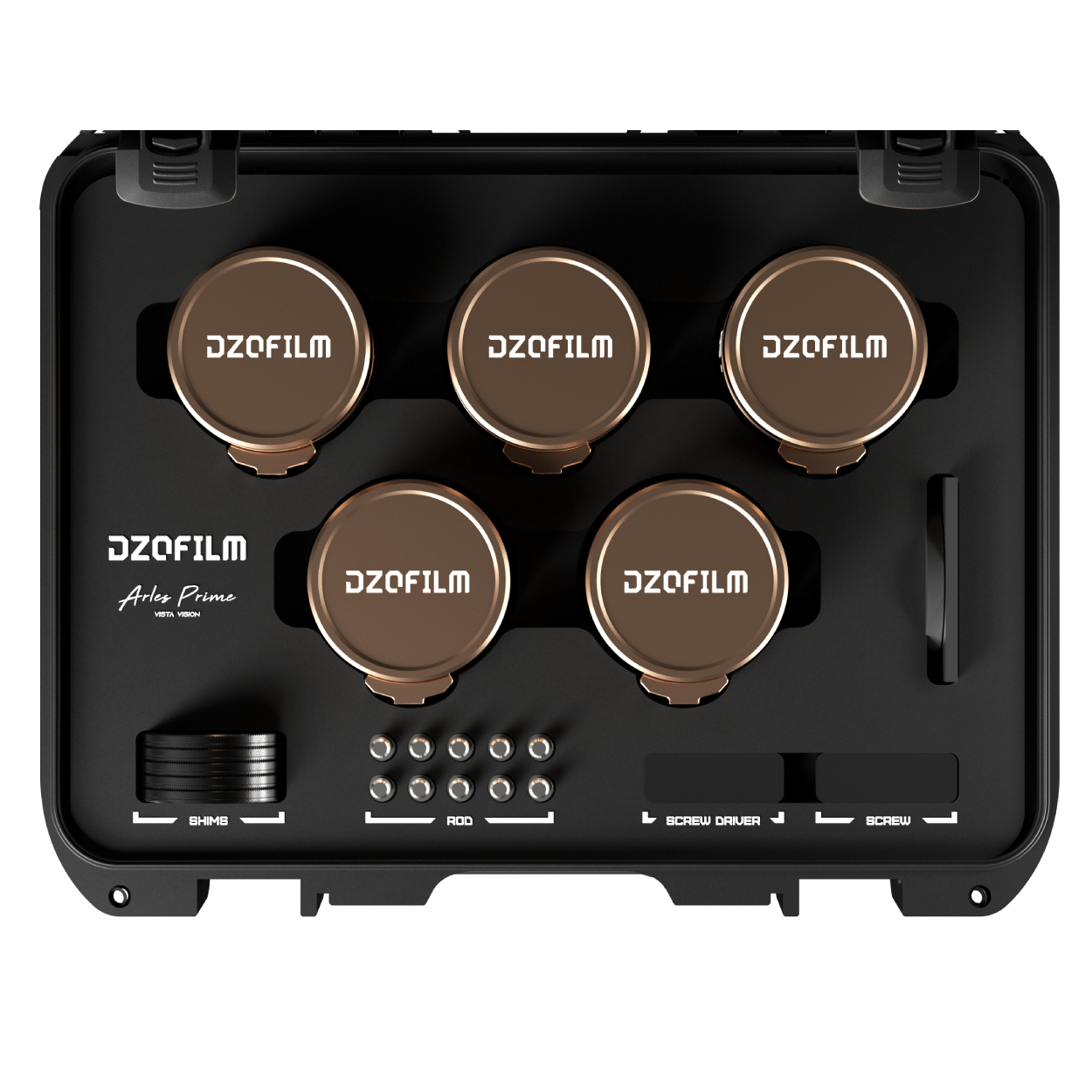

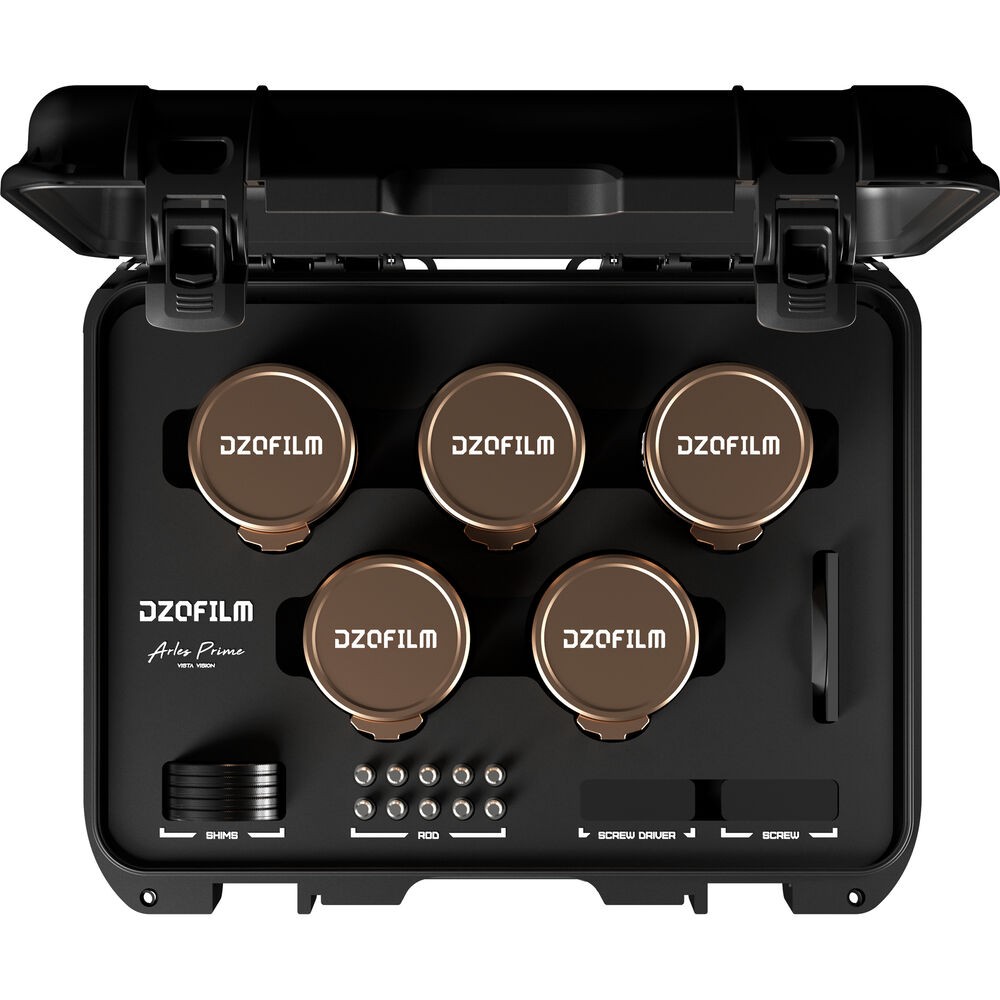

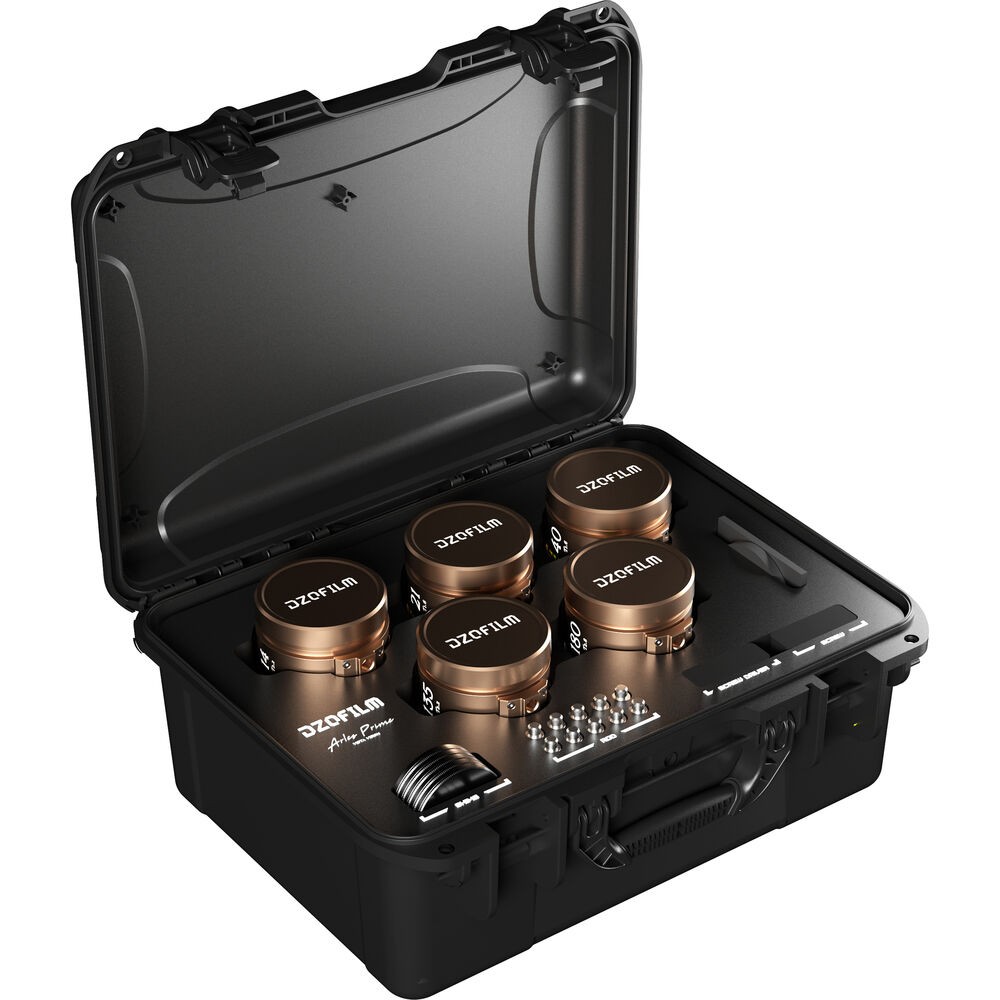

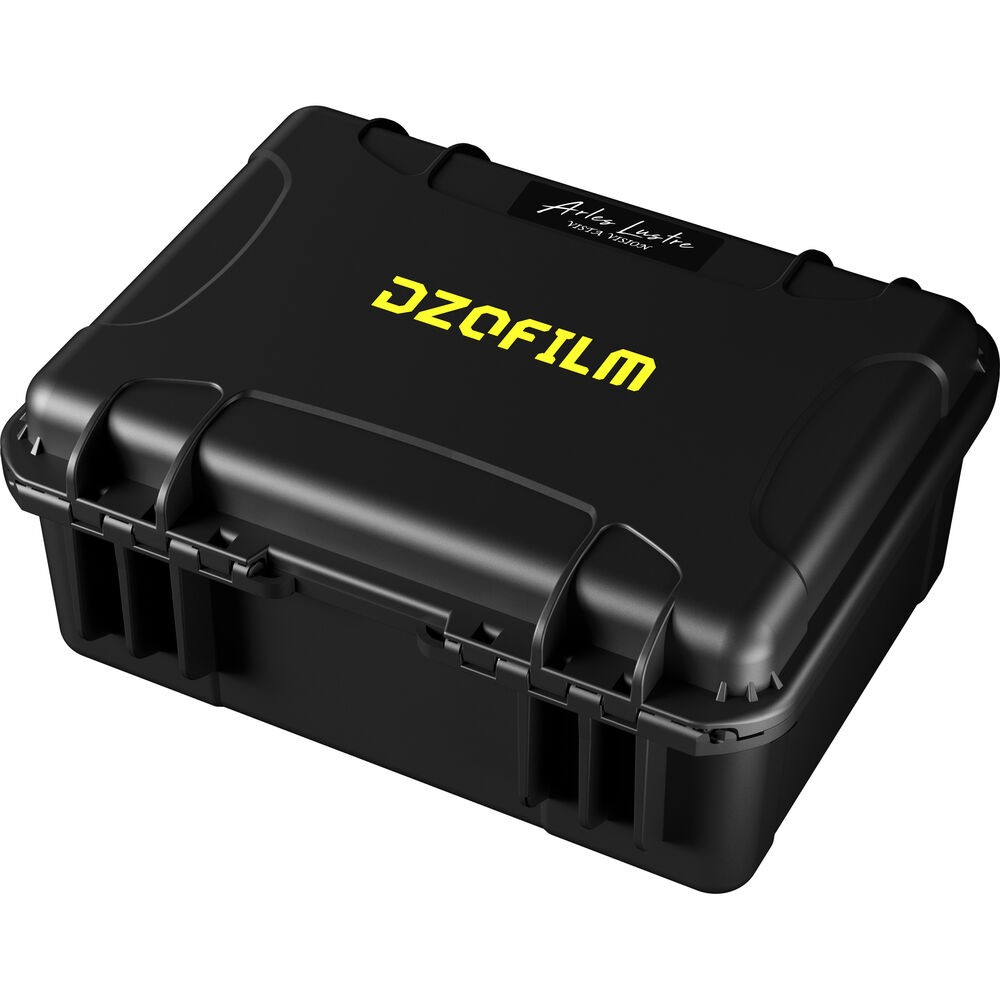

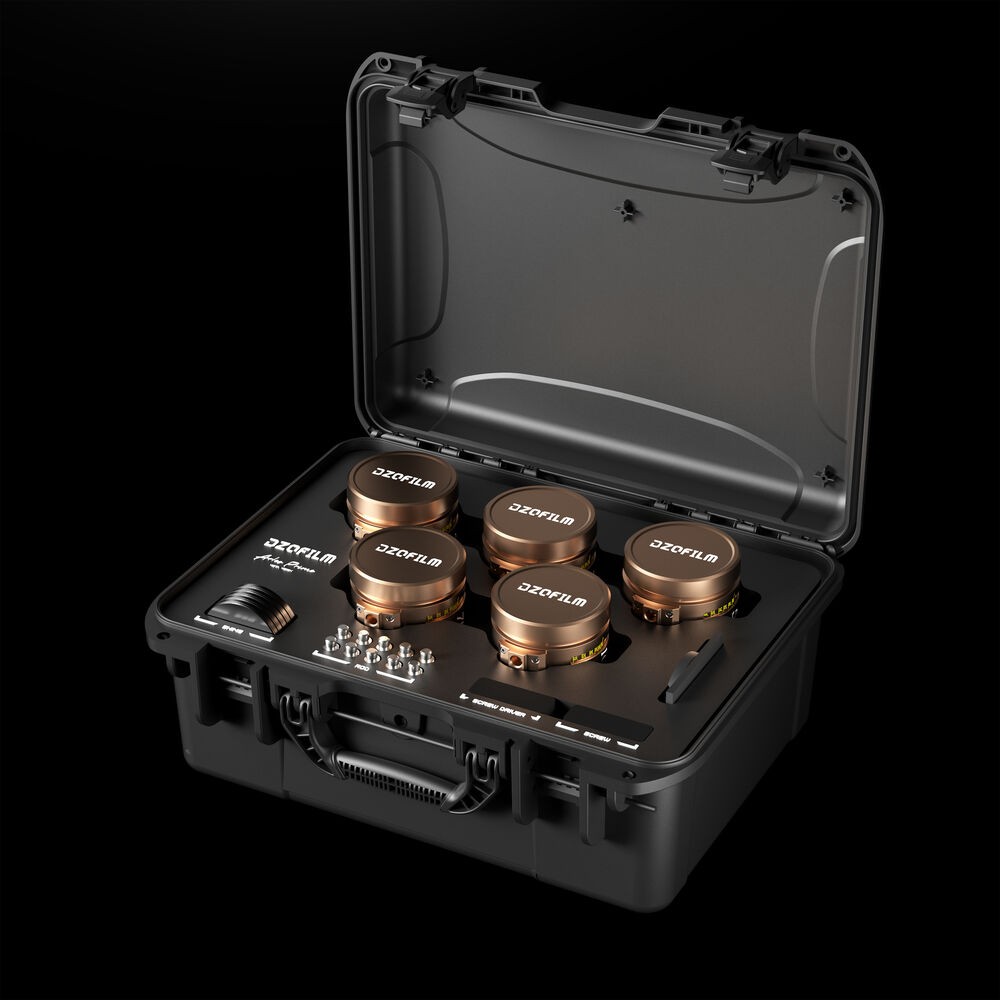

- The included hard case has a custom-cut foam insert.
Consistency Across Series
- Each lens in the Arles Lustre series has a cine-style design with 0.8 MOD focus and aperture gears.
- Consistent 0.8 MOD gear placement, similar lengths and weights, and a common 95mm front outside diameter across the series help speed the lens changes when using a matte box or lens control system.
- Each lens in the series (except the 14mm) has an M86 front filter thread, enabling you to attach a filter without the weight of a matte box.
Features
- These ARRI PL-mount lenses feature a unique metallic finish and a retro design.
- Their relatively light weight makes these Arles Lustre lenses suitable for handheld, shoulder-mounted, and vehicle rig capture.
- These lenses have an image circle compatible with large-format, full-frame, and VistaVision camera sensors.
Maximum Aperture |
T1.6 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Interchangeable Mount |
Yes |
Lens Format Coverage |
Full-Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales |
Metric, Imperial |
Optical Design |
15 Elements in 12 Groups |
Filter Thread |
86 mm |
Aperture/Iris Blades |
16 |
Image Stabilization |
No |
Lens Mounting |
No |
Gear Standard |
Focus, Iris: 0.8 MOD |
Gear Rotation |
Focus: 270° |
Electronic Communication |
No |
Diameter |
3.7″ / 95 mm |
Length |
4.8″ / 121.8 mm |
Weight |
3.64 lb / 1.65 kg |
